The year began with the re-start of drills that were left in stand-by mode over the holiday break to drill a horizontal hole at the south end of North Zone (Drill Hole N044) and a hole located among the line of holes along the western part of South Zone (S020). Since drilling restarted, we completed holes N044, S020 and S021. The South Zone drill has been demobilized from the Zone, though the contractor has permitted the drill to remain at the project for the foreseeable future.
Three shipments of samples for assay (including standards, duplicates and blanks) have been dispatched to the ALS laboratory in Hermosillo – the initial shipment included the last samples of S018 and all of S019, and the initial part of N044, followed by a shipment comprising S020 and the geotechnical hole GT001 (North Zone) and then a consignment comprising of S021 and the balance of N044.

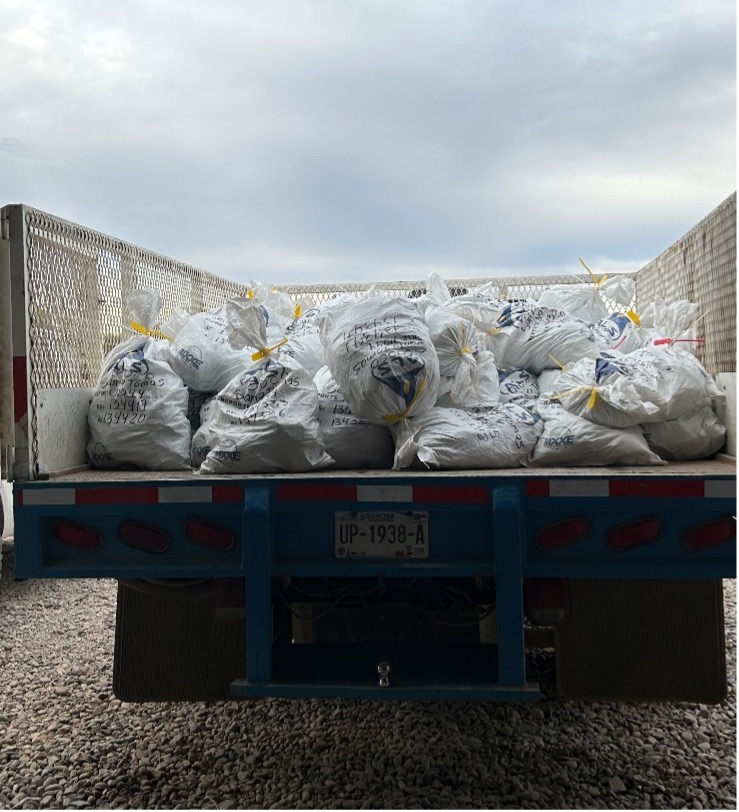

Sample shipment – the ALS Chain of Custody begins at Ranchito where the samples are collected by ALS directly from the sample cage (right), now standing empty for the first time in a long while!

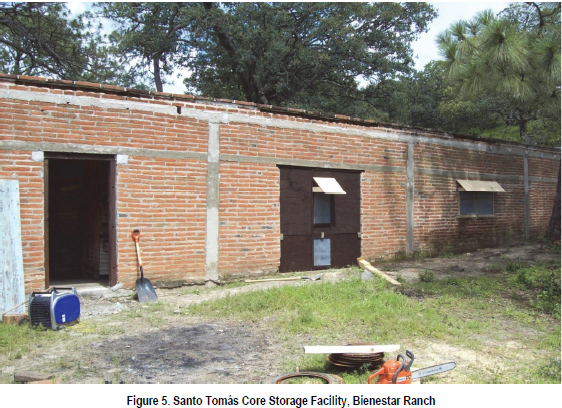

With a reduction in drilling, we have turned our attention to further curating the historical drill samples. The historical core was left well organized by the previous project owner, secured in a building located at one of the ranches (Bienstar) near the project. The storage is shown in our 43-101 technical report (Figure 5) as below:
Over time the Bienstar Ranch was left unoccupied, and fell into disrepair owing to neglect. Despite the collapse of some core racks and the general run-down nature of the facilities and cardboard core boxes, we found the materials still generally well organized when we mobilized in 2020. As a priority we carefully re-boxed all the core we could salvage, and relocated the core to Ranchito.

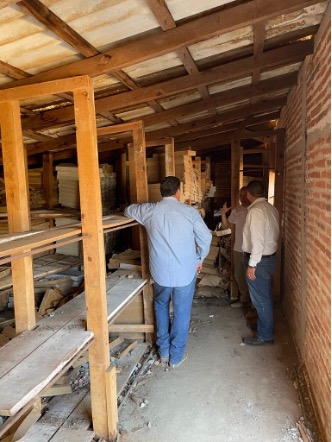

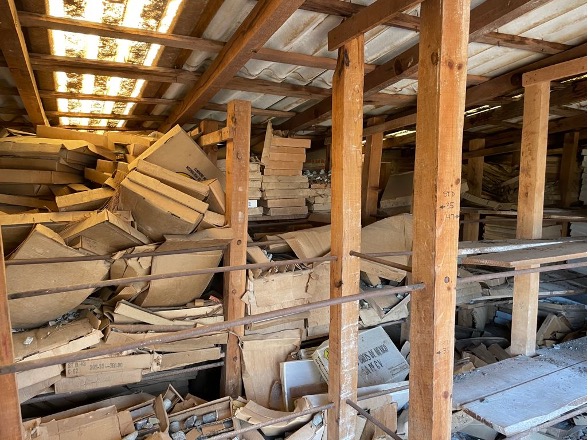

Disrepair and some core-rack collapse at Bienstar.

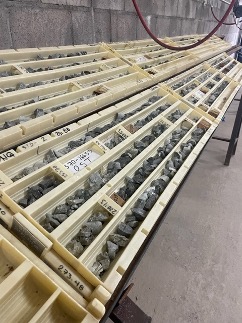

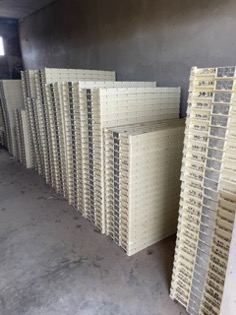

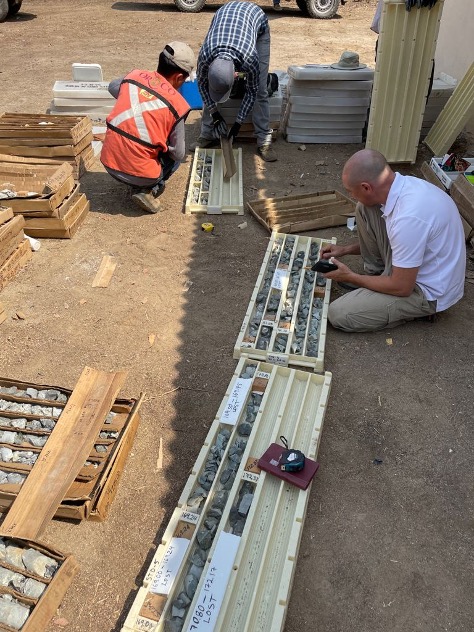

Careful re-boxing and labeling… 2020; and storage at the Ranchito concrete storage facility, with engraved labeling in the new, project-standard core boxes
We are now setting about re-evaluating the historical core, and preparing the boxes for photography and relocation for storage with the new-generation core at the core storage facility…
______________________________________________________
NEWS RELEASE - Oroco Continues North Zone Success
VANCOUVER, British Columbia – (January 11, 2023) Oroco Resource Corp. (TSX-V: OCO, OTC: ORRCF) (“Oroco” or “the Company”) announces further assay results from the North Zone drilling program at its Santo Tomas project (the “Property”) located in northwestern Mexico. Holes N039 to N043 totalled 2,668 m of drilling which demonstrated continuity of good grade mineralization, including 135 m of 0.60 CuEq (see Table 1 and Figures 1 and 2, attached). The strike length of the North Zone now spans approximately 1,600 m. To view an interactive 3D model that includes the North Zone results announced today, use the following link: https://vrify.com or visit Oroco's website: www.orocoresourcecorp.com.
Richard Lock, Oroco’s CEO, commented: “We are very pleased with the results of the first 43 drill holes of our 2021-2022 North Zone drill program. They have confirmed and expanded the higher-grade, near-surface mineralization amenable to early-year open-pit mining. We are also looking forward to the results of the horizontal drill program currently being conducted in the previously untested southwest area of the North Zone as it has the potential to significantly add to the mineral resource estimate in support of our upcoming Preliminary Economic Assessment.”
HIGHLIGHTS
- Drill hole N039, drilled approximately 200 m downdip from N001 (255 m of 0.39% CuEq) and 200 m up dip from N029 (106.1 m of 0.31 CuEq) demonstrates the continuity of good grade mineralization in the North Zone at plate 59, confirming and expanding the Cu >0.30% Gradeshell model (the “Gradeshell”) defined in the Company’s 2019 Technical Report.
- Drill hole N040 returned one of the deepest intersections of copper in the North Zone as it intersected a downdip extension of the North Zone to 200 m below sea level, demonstrating that mineralization extends 700 m downdip from surface while still being open downdip and to the west.
- Drill holes N041, N042 and N043 continued testing the southern end of the North Zone as the Company continued its efforts to confirm shallow-seated higher-grade mineralization at the southern end of the North Zone and to define its southern extent.
- Drill hole N041, collared at plate 40, was drilled downdip of N032 (88.7 m of 0.34% CuEq), confirms the Gradeshell while defining the southern limit of the North Zone.
- Drill hole N042, collared at Plate 44, 200 m north of drill hole N041, returned mineralization that is both broader and of higher grade than predicted by the Gradeshell.
- Drill hole N043, collared at plate 38, intersected only minor mineralization as it intersected a steeply dipping east-west fault that defines the southern extent of the North Zone.
DRILLING RESULTS
All drill holes tested the deposit perpendicular to its structural attitude. Core intervals are within approximately 10% of true thickness. Assay results and cross-sections through the first forty-three North Zone drill holes (21,379 m of drilling), the first seven Brasiles Zone drill holes (5,116 m) and the first three South Zone drill holes (2,054 m) are available at the Company’s website.
North Zone Deposit to the West Side of the Ridge
Drill holes N039 and N040 continued the Company’s testing of the hanging wall side of the deposit in the north-west side of the central axis of the deposit.
Drill hole N039 (Plate 59) returned three mineralized intervals, with a main interval of 265.0 m of 0.36% CuEq commencing approximately 40 m above the Gradeshell and extending 50 m below it.
Drill hole N040 (Plate 65) returned four mineralized intervals, with a main interval of 152.1 m of 0.33 CuEq in a downdip extension approximately 200 m to the west of the Gradeshell.
Defining the Southern Extent of the Central Axis of the North Zone
The southern portion of the North Zone is blind to surface and beneath a blanket of post-mineralization volcanic rock. Modelling of the historical results and structural analysis has successfully delineated the North Zone 400 m south from drill hole N020 to the limit of the zone at drill hole N043.
The North Zone program now has confirmed good-grade mineralization in a gently north-plunging panel beneath the Santo Tomas ridge, extending 1,600 meters along strike, to 400 m and 800 m downdip below surface..
Drill hole N042 (Plate 44) returned 135.0 m of 0.60% CuEq extending across and below the Gradeshell.
Drill hole N041 (Plate 40), collared approximately 200 m south of N042, continued the confirmation of the Gradeshell with two mineralized intervals, with the first interval returning 20 m of 0.35 CuEq, and the second main interval commencing 5 m deeper returning 96 m of 0.52 CuEq.
Drill hole N043 (Plate 38), collared approximately 100 m south of N041, returned three minor intervals of mineralization. N043 intersects the faults that are the south termination of the North Zone.
Table 1: Significant Assay Intervals in the 2021-2022 Program, Drill Holes N039 to N043:
Drill Hole
No. |
Dip |
From
(m) |
To
(m) |
Length
(m) |
Cu % |
Mo % |
Au g/t |
Ag g/t* |
CuEQ % |
| N039 |
-55 |
230.2 |
288.2 |
58.0 |
0.14 |
0.002 |
0.010 |
1.09 |
0.15 |
| " |
-55 |
313.3 |
334.7 |
21.4 |
0.46 |
0.005 |
0.016 |
3.70 |
0.49 |
| " |
-55 |
355.0 |
620.0 |
265.0 |
0.31 |
0.010 |
0.020 |
2.18 |
0.36 |
| N040 |
-85 |
431.0 |
472.0 |
41.0 |
0.21 |
0.007 |
0.012 |
1.70 |
0.24 |
| " |
-85 |
479.0 |
631.1 |
152.1 |
0.29 |
0.009 |
0.013 |
2.61 |
0.33 |
| N041 |
-90 |
224.0 |
244.6 |
20.6 |
0.30 |
0.002 |
0.063 |
1.45 |
0.35 |
| " |
-90 |
249.0 |
345.0 |
96.0 |
0.47 |
0.006 |
0.038 |
2.48 |
0.52 |
| N042 |
-55 |
254.0 |
389.0 |
135.0 |
0.53 |
0.005 |
0.075 |
2.99 |
0.60 |
| N043 |
-55 |
330.9 |
356.0 |
25.1 |
0.21 |
0.002 |
0.023 |
1.86 |
0.23 |
Cu Equivalent (CuEq) % = Cu % + (Mo %*3.75) + (Au ppm*0.752). The commodity prices (3-year Average) used are in $US: Cu $3.20 /lb, Mo $12.00 /lb, and Au $1,650.00 /troy oz. * Ag values are not used in the CuEq calculations.
BALANCE OF THE NORTH ZONE PROGRAM
The Company’s has largely completed its North Zone drill program in support of the planned Preliminary Economic Feasibility Study. The balance of the program focusses on horizontal drilling from the base of the Santo Tomas ridge. Horizontal holes and shallow dipping holes will allow testing of the southern 400 m of the North Zone, at depths 300 to 500 m below surface, to the south of hole N038 (plate 49) (see Figure 1 attached). This area of the North Zone has the potential to add significant tonnage to the resource estimate being prepared in support of the planned Preliminary Economic Assessment.
SOUTH ZONE PROGRAM
The Company’s South Zone program has now drilled 19 holes (11,069 m) in its program to confirm and test the South Zone deposit, with the assay results of holes S004 through S019 pending. Historical drilling, surface geological mapping, and the Dias Geo 3D Induced Polarization survey have defined near-surface mineralization projected to 400 m below the surface along 2,500 m of strike length.
TECHNICAL INFORMATION AND QUALITY CONTROL / QUALITY ASSURANCE
The historical drilling data employed in this current exploration program was the subject of Data Verification procedures cited in the current Technical Report. Additional drill collar verifications were performed in the current program, and collar locations fit closely to the 2021/2022 survey control. Appropriate QA/QC protocols governed geological logging, core sampling, sample preparation, analyses, and security during the current program, including quality controls with duplicates, standards, and blanks. Samples were submitted to the Mexican division of ALS Limited in Hermosillo, Mexico, for sample preparation to pulps. Sample pulps are then sent to ALS Canada Ltd. in Vancouver, Canada, for analysis. Total copper and molybdenum contents are determined by four-acid digestion with AAS finish. Gold was determined by fire assay of a 50-gram charge, or alternately, of a 30-gram charge (1 Assay ton).
QUALIFIED PERSON
Mr. Paul McGuigan, P. Geo., of Cambria Geosciences Inc., a “Qualified Person” (as defined in NI 43-101 -Standards for Disclosure for Mineral Projects) and a senior consulting geoscientist to the Company, has reviewed and approved the technical disclosures in this news release. The Company strictly adheres to CIM Best Practices Guidelines in conducting, documenting, and reporting the exploration activities on its projects.
ABOUT OROCO:
The Company holds a net 85.5% interest in the collective 1,172.9 ha Core Concessions of the Santo Tomas Project in NW Mexico. The Company also holds an 80% interest in 8,154.3 ha of mineral concessions surrounding and adjacent to the Core Concessions (for a total project area of 23,048 acres). The Project is situated within the Santo Tomas District, which extends from Santo Tomas up to the Jinchuan Group’s Bahuerachi project, approximately 14 km to the northeast. Santo Tomas hosts a significant copper porphyry deposit defined by prior exploration spanning the period from 1968 to 1994. During that time, the property was tested by over 100 diamond and reverse circulation drill holes, totalling approximately 30,000 meters. Based on data generated by these drill programs, a historical Prefeasibility Study was completed by Bateman Engineering Inc. in 1994.
The Santo Tomas Project is located within 160 km of the Pacific deep-water port at Topolobampo and is serviced via highway and proximal rail (and parallel corridors of trunk grid power lines and natural gas) through the city of Los Mochis to the northern city of Choix. The property is reached by a 32 km access road originally built to service Goldcorp’s El Sauzal Mine in Chihuahua State.
